The Entity-Relationship (ER) Model is a conceptual and visual representation used in database design to illustrate the logical structure and organization of data. It is essential for understanding the relationships between various entities within a database system and plays a crucial role in ensuring the efficient management of data.
1. Introduction to the Entity-Relationship (ER) Model
The Entity-Relationship (ER) Model serves as a foundational framework in database design, enabling the visualization and structuring of complex data sets. It provides a comprehensive overview of the relationships between different entities, allowing for the effective organization and management of data within a database system.
2. Understanding the Components of the ER Model
Entities
Entities represent distinct objects or concepts within the database that are relevant to the overall data management process. These entities can range from tangible objects such as products and customers to abstract concepts such as transactions and orders.
Attributes
Attributes define the specific characteristics or properties associated with each entity. They provide detailed information about the various aspects and traits of the entities, facilitating a comprehensive understanding of the data stored within the database.
Relationships
Relationships denote the associations and connections between different entities within the database. They establish the linkages and dependencies that exist between various data elements, allowing for the establishment of logical connections and dependencies within the database structure.
3. Benefits of Using the ER Model in Database Design
The utilization of the ER Model in database design offers several key advantages that contribute to the effective management and organization of data:
I. Visual Representation
The ER Model provides a visual representation of the data structure, allowing for the creation of comprehensive diagrams that showcase the relationships between different entities and their attributes.
II. Logical Structure
By defining the logical structure of the database, the ER Model facilitates the establishment of a cohesive and well-organized framework that supports efficient data management and retrieval.
III. Interconnectedness of Data
The ER Model highlights the interconnected nature of the data within the database, emphasizing the dependencies and relationships that exist between various data elements, entities, and attributes.
4. Types of Entity
In the Entity-Relationship (ER) Model, entities serve as the primary constituents representing tangible real-world objects or abstract concepts. Entities can be classified into diverse categories based on their attributes and interconnections. Grasping the nuances of these entity types is imperative for efficient database organization and design. This presentation will furnish a comprehensive overview of the principal categories of entities: Strong Entity, Weak Entity. Each entity type possesses its distinctive attributes, and a comprehensive understanding of these is instrumental in the creation of effective and efficient databases.
Strong Entity:
A strong entity is an independent entity capable of autonomous existence with its distinct unique identifier. Strong entities represent the primary real-world objects or concepts necessitating representation within the database. For instance, a customer, a product, or an employee can all qualify as strong entities.
Characteristics:
- Have their own unique identifier.
- Can exist independently.
- Represent primary objects or concepts in the real world.
- Can have attributes that describe their own properties.
Examples:
Various instances of strong entities include customers, products, employees, and students. In the context of a student database, the 'student' entity would be deemed a strong entity owing to its distinct identifier, such as a student ID, enabling autonomous existence without reliance on other entities.
Understanding strong entities assumes crucial significance in the process of designing an efficient and effective database. Through the identification of strong entities and their interrelationships, the database designer can craft a database schema that accurately mirrors real-world objects and their attributes, thus minimizing redundancy and ensuring data integrity.
Weak Entity:
A weak entity is an entity reliant on another entity for its existence and survival. Termed the 'child entity,' the weak entity is reliant on a corresponding strong entity, the 'parent entity.' Weak entities are utilized to simulate one-to-many relationships between entities where the child entity lacks a unique identifier.
Characteristics:
- Cannot exist without a parent entity.
- Do not have their own unique identifier.
- Identified by a combination of their attributes and the identifier of the parent entity.
- Represent secondary objects or concepts in the real world
Examples:
Instances of weak entities include orders, invoices, and reservations. In the context of a hotel booking system, the 'reservation' entity would be classified as a weak entity as it cannot exist without a corresponding 'room' entity, the parent entity. The reservation entity would be identified through a combination of its attributes, such as the reservation date, and the room entity's identifier.
Understanding weak entities is pivotal in the process of designing an efficient and effective database. Through the accurate identification of weak entities and their parent entities, the database designer can create a database schema that faithfully represents the real-world relationships between entities while minimizing redundancy and ensuring data integrity.
comparison of strong entity and weak entity
Strong Entity | Weak Entity | |
Definition | An entity that can exist independently and does not rely on another entity for its existence | An entity that depends on a strong entity for its existence |
Unique Identifier | Has its own unique identifier | Does not have its own unique identifier and its existence is defined by the combination of its attributes and the identifier of its parent entity |
Role in Relationships | Typically participates in many-to-many or one-to-many relationships with other entities | Usually participates in a one-to-many relationship with its parent entity |
Attributes | Can have attributes that describe its properties | May only have attributes that describe its relationship to its parent entity |
Usage | Used to represent primary objects or concepts in the real world | Used to represent secondary objects or concepts that cannot exist without its parent entity. |
Attributes
In database design, an attribute refers to a property or characteristic of an entity. Understanding the types of attributes is crucial for creating a comprehensive data model that accurately represents the real-world information. Here are the key types of attributes commonly used in the Entity-Relationship (ER) model:
A. Simple Attribute
A simple attribute cannot be divided further into smaller components. For instance, the "age" attribute of a person is considered a simple attribute as it cannot be broken down into more specific parts.
B. Composite Attribute
A composite attribute can be divided into smaller sub-attributes. For example, the "address" attribute of a person can include sub-attributes like street address, city, state, and country.
C. Derived Attribute
A derived attribute is one that can be derived from other attributes. For example, the "total cost" attribute of an order can be calculated using the "unit price" and "quantity" attributes.
D. Null Attribute
A null attribute represents an attribute with no assigned value, typically used for representing missing or unknown information.

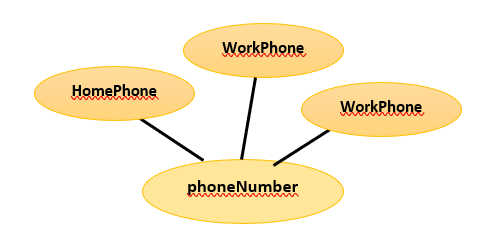

E. Multivalued Attribute
A multivalued attribute can have multiple values for a single entity. For example, the "phone number" attribute of a person can include multiple values like home phone, work phone, and cell phone.
Key Attribute
A key attribute is essential for uniquely identifying each entity in the data model. For instance, the "customer ID" in a customer database serves as a key attribute as it uniquely distinguishes each customer.
A. Primary Key
The primary key serves as a unique identifier for each record in a table. It enforces data integrity and ensures the uniqueness of each record.
B. Foreign Key
A foreign key establishes relationships between tables by referencing the primary key of another table. It ensures referential integrity between related tables.
C. Candidate Key
A candidate key can uniquely identify each record in a table but may not be selected as the primary key.
D. Unique Key
Similar to the primary key, a unique key guarantees the uniqueness of each record but allows for null values.
E. Super Key
A super key is a combination of one or more columns that uniquely identify each row in a table. It may contain additional columns that aren't necessary for uniqueness.
Understanding the properties and utilization of keys in database design is critical for maintaining data consistency and facilitating efficient data retrieval. Keys ensure data uniqueness, consistency, determinism, and simplicity, which are essential for maintaining a robust database system.
